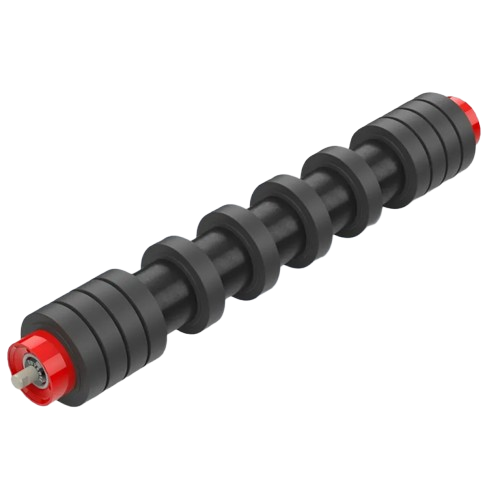

Tanay Engineering Works makes strong and reliable Return Rollers that support the empty part of a conveyor belt. These rollers help the belt move back smoothly and stay in the correct position. Made with high-quality materials by skilled workers, our Return Rollers work well even in tough working conditions. They are long-lasting, reduce belt damage, and need very little maintenance—making them a great choice for industries like cement, mining, power, and more.
Technical Feature | Specification |
Roller Diameter | 76 mm to 159 mm (Custom sizes available) |
Roller Length | 300 mm to 1800 mm (Based on belt width) |
Shell Material | ERW Steel Tube / Stainless Steel |
Shaft Diameter | 20 mm to 40 mm (as per load) |
Bearing Type | Deep Groove Ball Bearing (Sealed/Greased) |
Finish | Powder Coated / Zinc Plated / Painted |
Sealing | Labyrinth Seal / Dustproof Seal |
Balancing | Static or Dynamic (on request) |
Mounting Options | Bracket Mount / Bolt-On Mount |
Application Field
Our Return Rollers are used in many industries where conveyor systems are needed. Some common applications include:
- Cement Plants – For handling raw materials and finished products
- Mining and Quarrying – To move heavy materials like coal, stone, and ore
- Power Plants – For transporting coal and other fuels
- Steel and Metal Industries – In material handling systems
- Logistics and Warehousing – For smooth goods movement
- Fertilizer and Chemical Plants – In harsh and corrosive environments
